A line up of 15 models in the catalogue and 5 sidecars. New introductions were the 350cc Special, the 500cc V-twin and the 150cc X0 a tax friendly model. All other models basically unchanged.



BSA 1934 models

Model



Description



Remarks

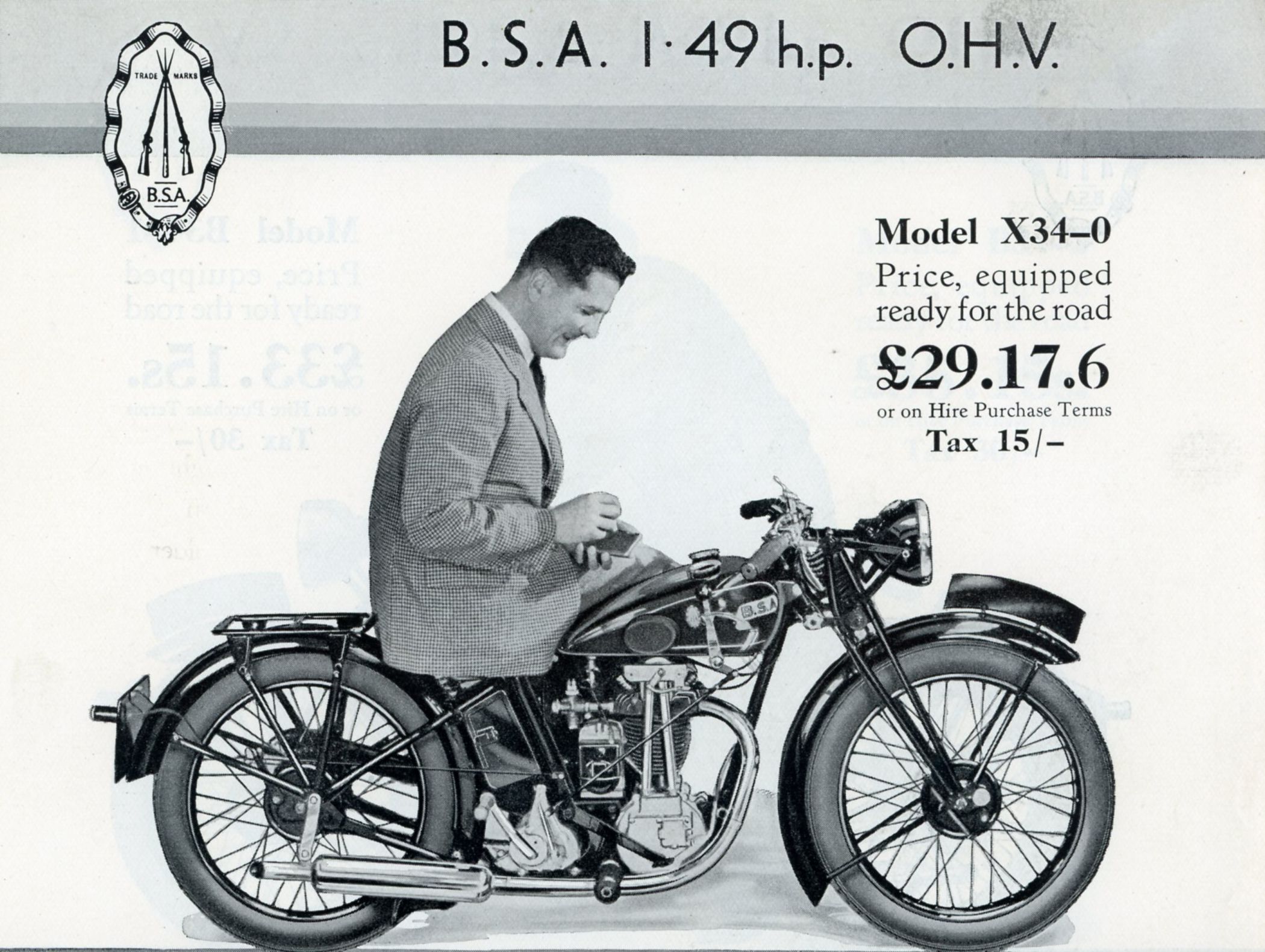

1.49 h.p. O.H.V. X34-0

X34-0 or 1.49 h.p. O.H.V. A very basic 149cc OHV model with total loss lubrication and fitted with the ill fated Lucas Maglita ignition/dynamo intorduced for tax reasons.

black frame, green petrol tank.

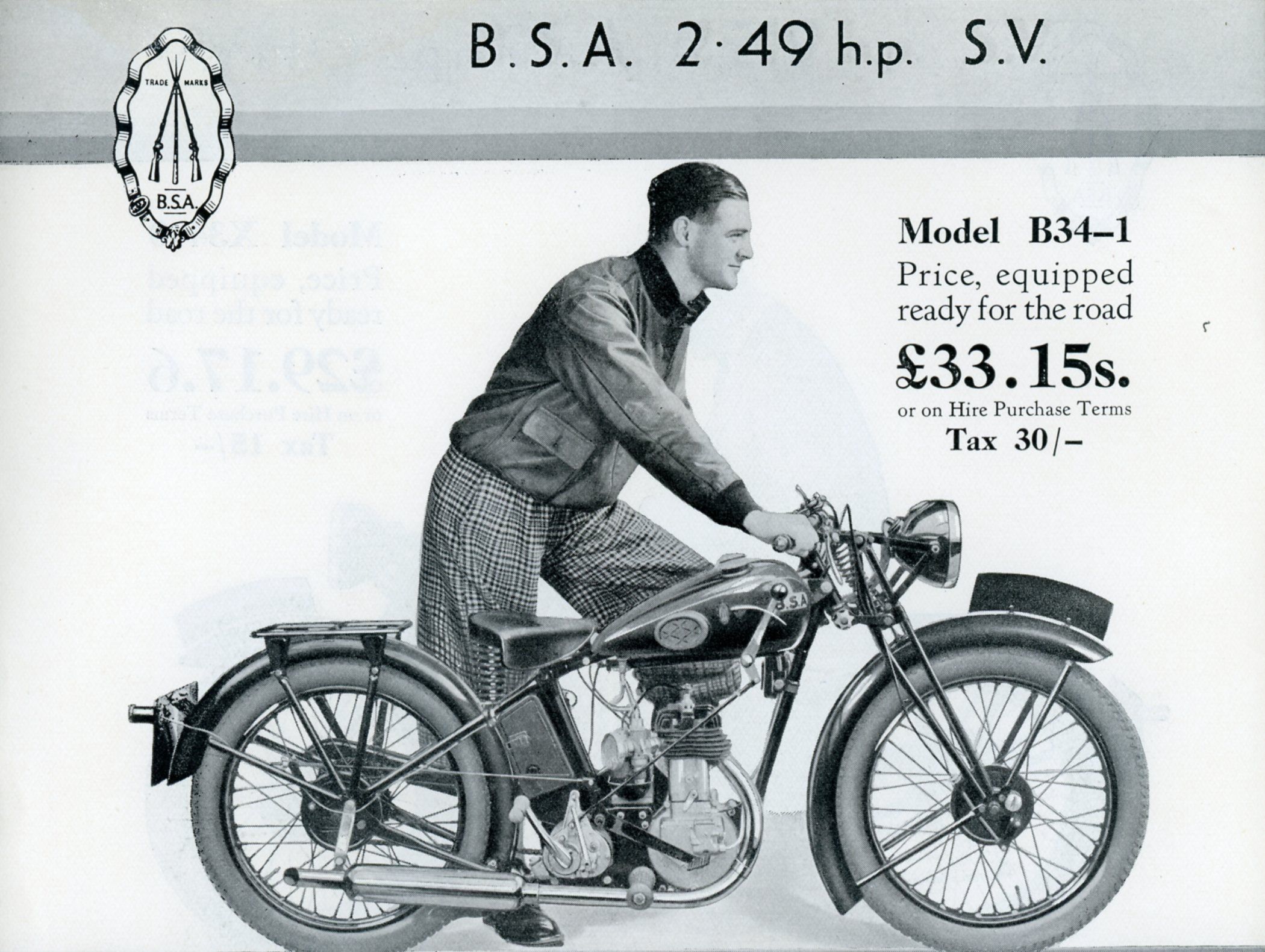

2.49 h.p. S.V. B34-1

B34-1 or 2.49 h.p. S.V. Very basic 249cc sidevalve model with total loss lubrication and fitted with the ill fated Lucas Maglita ignition/dynamo.

black frame, green petrol tank.

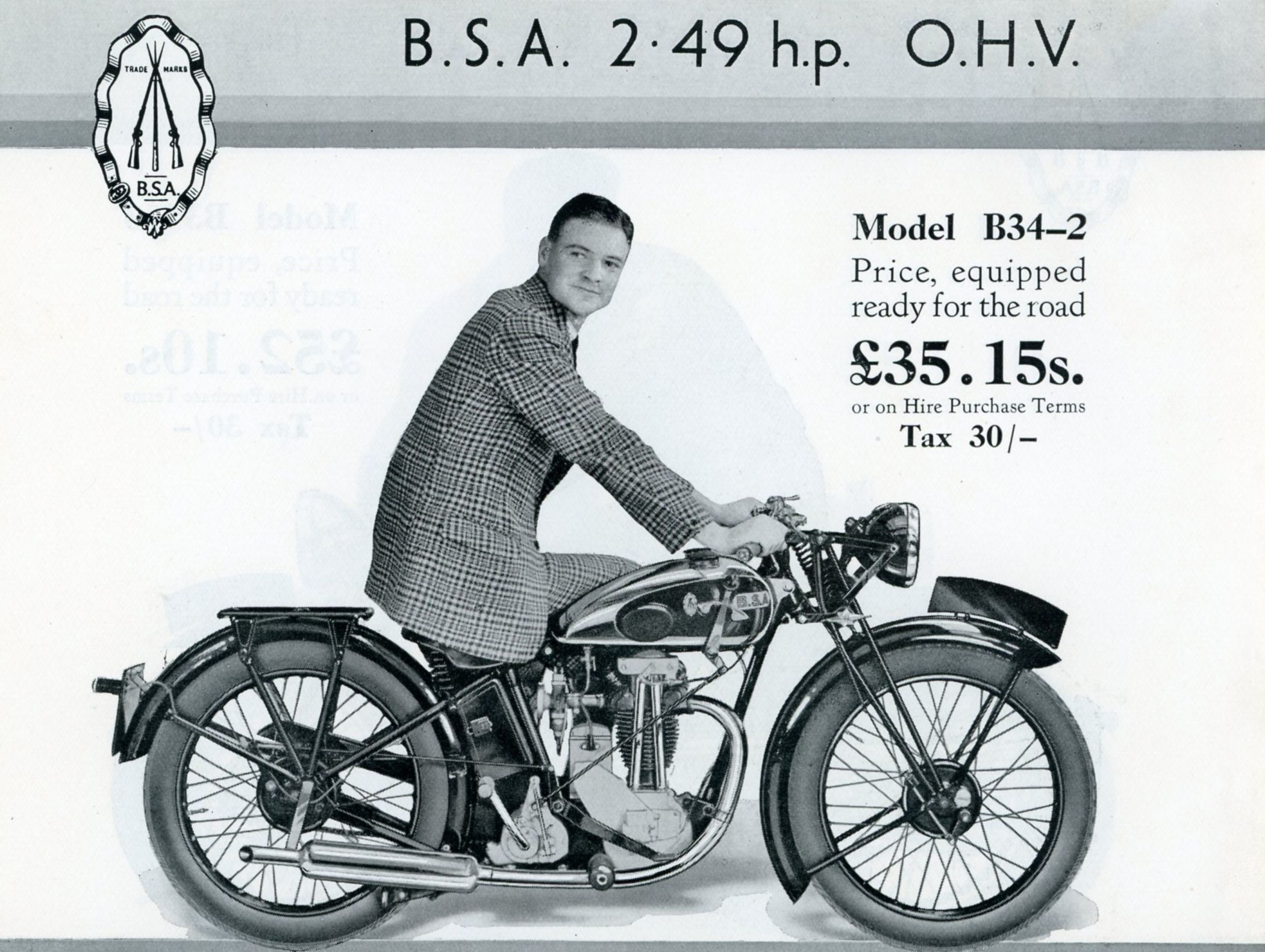

2.49 h.p. O.H.V. B34-2

B34-2 or 2.49 h.p. O.H.V. The basic 249cc OHV model with total loss lubrication and Lucas Maglita ignition.

black frame, chrome plated petrol tank with green panels.

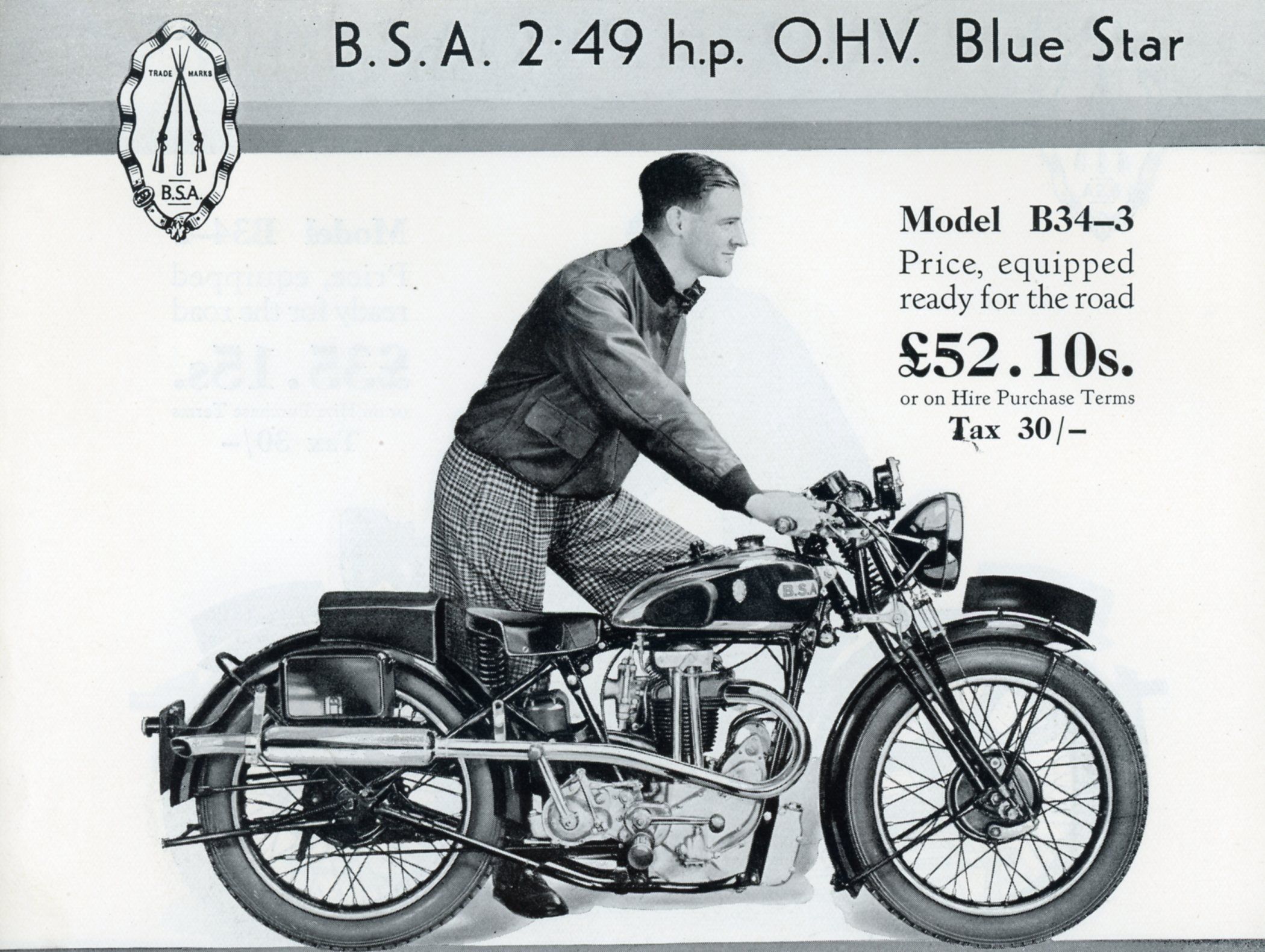

2.49 h.p. O.H.V. Blue Star B34-3

B34-3 Blue Star or 2.49 h.p. O.H.V. Blue Star. This model was also called Blue Star Junior. This sporting 249cc OHV Blue Star type was fitted with extras like special valve springs, special cams, special AMAL carburettor, linked brakes and two upswept exhaust pipes. Engine of the so called sump type, i.e. oil in a separate compartment in the engine castings and dry sump lubrication.

black frame, chrome plated petrol tank with green panels,instrument panel in tank. Special valve springs and cams, special AMAL carburettor, linked brakes and foot gear change. Special finish to crankcase and gearbox. Hand gear change and right hand foot brake optional.

3.48 h.p. R34-4

R34-4 or 3.48 h.p. O.H.V. Standard 348cc model intended for solo and small sidecar use.

black frame, chrome plated petrol tank with green panels,instrument panel in tank. Quickly detachable rear wheel. Special finish to crankcase and gearbox.

3.48 h.p. O.H.V. Blue Star R34-5

R34-5 Blue Star or 3.49 h.p. O.H.V. Blue Star. The sporting 348cc OHV Blue Star type, with all the extra bits like high compression piston, special cams, upswept exhaust pipes, sports plug, foot change and AMAL Pump carburetter.

black frame, chrome plated petrol tank with green panels, instrument panel in tank, chrome plated rims with black centres. Two upswept exhaust pipes, foot change gearbox, linked brakes, high compression piston, extra strong valve springs, racing cams, racing plug and AMAL pump carburetter. Quickly detachable rear wheel. Special finish to crankcase and gearbox. Hand gear change and right hand foot brake optional.

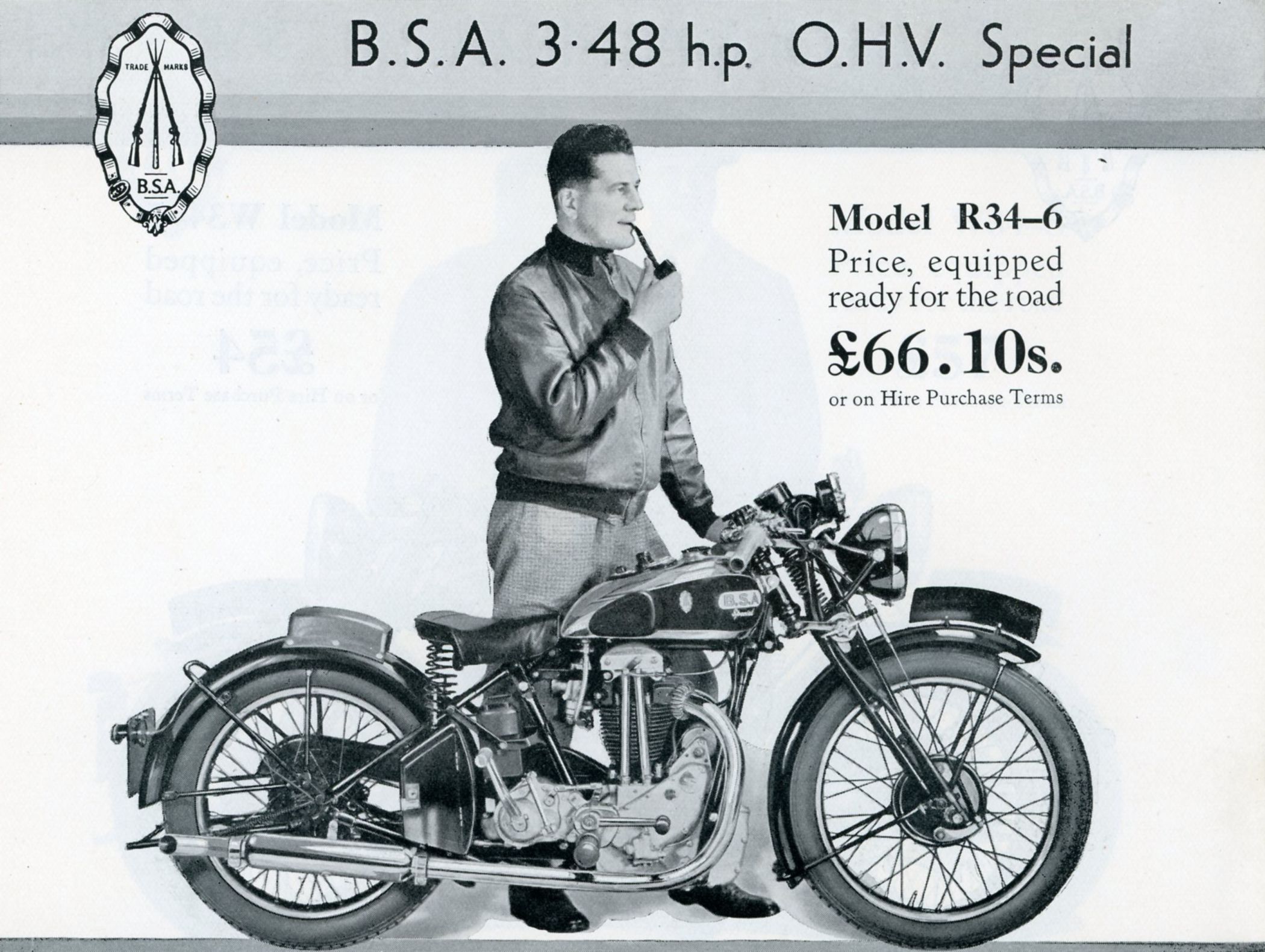

4.99 h.p. O.H.V. Special R34-6

R34-6 Special or 3.48 h.p. O.H.V. Special. The 348cc OHV "racing" model, race equipped with special racing piston, racing cams, 14mm spark plug, racing twist grip, racing seat on the rear mudguard, foot gear change and AMAL T.T. carburetter.

black frame, chrome plated petrol tank with instrument panel, chrome plated rims with black centres. Two low level exhaust pipes, foot change gearbox, high compression piston, racing cams, 14mm plug, racing seat on the rear, AMAL T.T. carburetter but with lighting and tool box. Quickly detachable rear wheel. Special finish to crankcase and gearbox. Hand gear change optional.

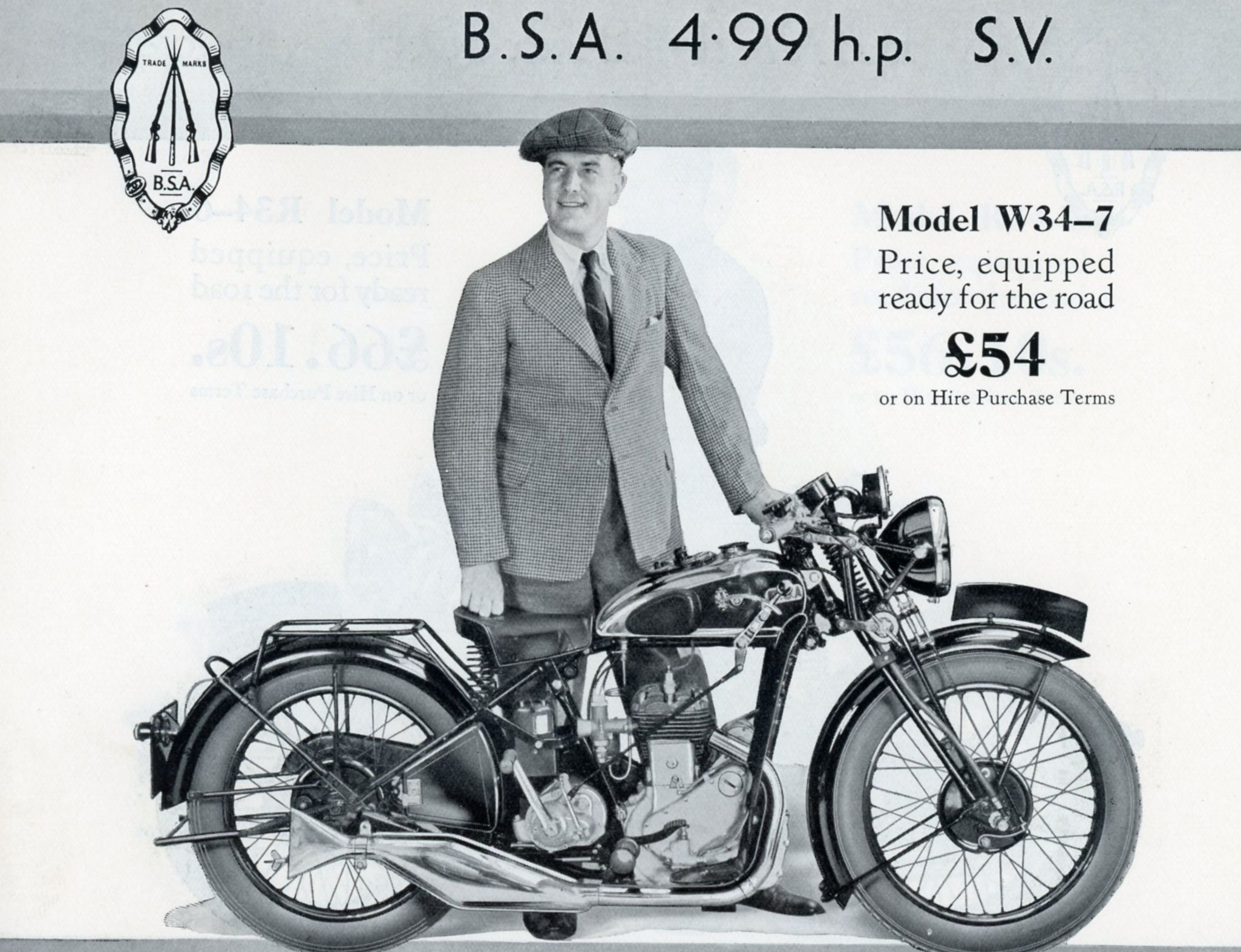

4.99 h.p. S.V. W34-7

W34-7or 4.99 h.p. S.V. The standard 499cc SV for sidecar users.

black frame, chrome plated petrol tank with green panels, instrument panel in tank and linked brakes. Special finish to crankcase and gearbox.

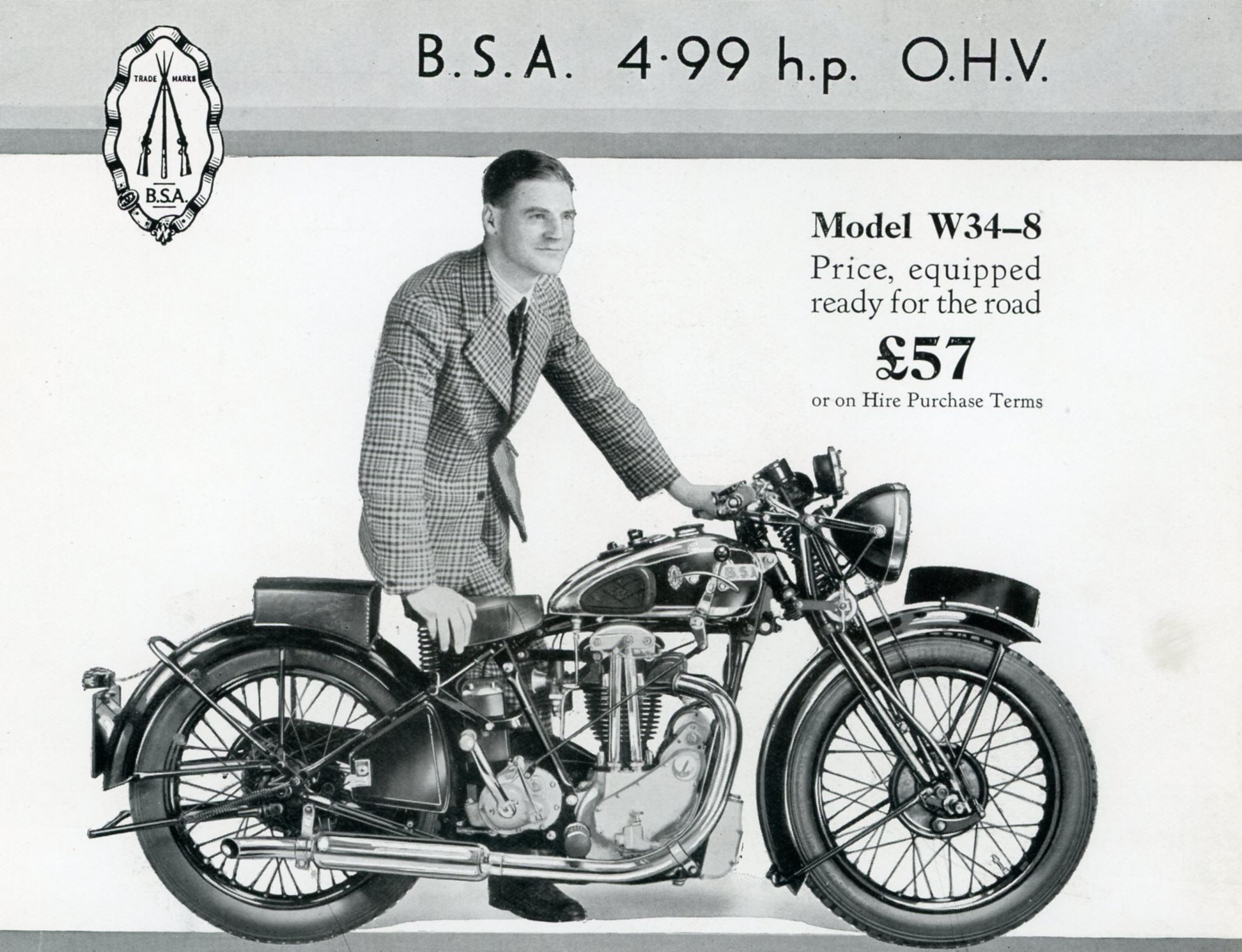

4.99 h.p. O.H.V. W34-8

W33-8 or 4.99 h.p. O.H.V. The standard 499cc OHV for fast solo work or sidecar users. Sump model with two separate pushrod tubes.

black frame, chrome plated petrol tank with green panels, instrument panel in tank. Quickly detachable rear wheel. Special finish to crankcase and gearbox.

4.99 h.p. O.H.V. Blue Star W34-9

W34-9 Blue Star or 4.99 h.p. O.H.V. Blue Star. The sporting 499cc OHV Blue Star type, with all the extra bits like high compression piston, special cams, upswept exhaust pipes, sports plug, foot change and AMAL Pump carburetter.

black frame, chrome plated petrol tank with green panels, instrument panel in tank, chrome plated rims with black centres. Two upswept exhaust pipes, foot change gearbox, high compression piston, extra strong valve springs, racing cams, racing plug and AMAL pump carburetter. Quickly detachable rear wheel. Special finish to crankcase and gearbox. Hand gear change optional.

4.99 h.p. O.H.V. Special W34-10

W34-10 Special or 4.99 h.p. O.H.V. Special. The 499cc OHV "racing" model, race equipped with special racing piston, special valves and springs, special cams, rockers and rocker box, 14mm spark plug, racing twist grip, racing seat on the rear mudguard, foot gear change and AMAL T.T. carburetter.

black frame, chrome plated petrol tank with instrument panel, chrome plated rims with black centres. Two low level exhaust pipes, foot change gearbox, high compression piston, extra strong special valves and Springs, racing cams, 14mm racing plug, racing seat on the rear, AMAL T.T. carburetter but with lighting and toolbox. Quickly detachable rear wheel. Hand gear change optional.

4.89 h.p. O.H.V. Vee Twin J34-11

J34-11 Vee Twin or 4.98 h.p. O.H.V. Vee Twin. The introduction of the 498cc OHV V-twin originally designed for the War Office. This version still had open valves. The War Office used this bike in a similar set up as the War Office Twin. The military version didn't have the instrument panel. Instead it had a H52 headlamp with switch and ammeter. Further additions were a special side stand and a sump guard. It was painted green all over.

black frame, chrome plated petrol tank with green panels, instrument panel in tank. Special finish to gearbox and crankcase. Quickly detachable rear wheel.

5.95 h.p. S.V. M34-12

M34-12 or 5.95 h.p. S.V. A the big version of the sidevalve sloper for pulling a sidecar.

black frame, chrome plated petrol tank with green panels, instrument panel in tank. Quickly detachable rear wheel.

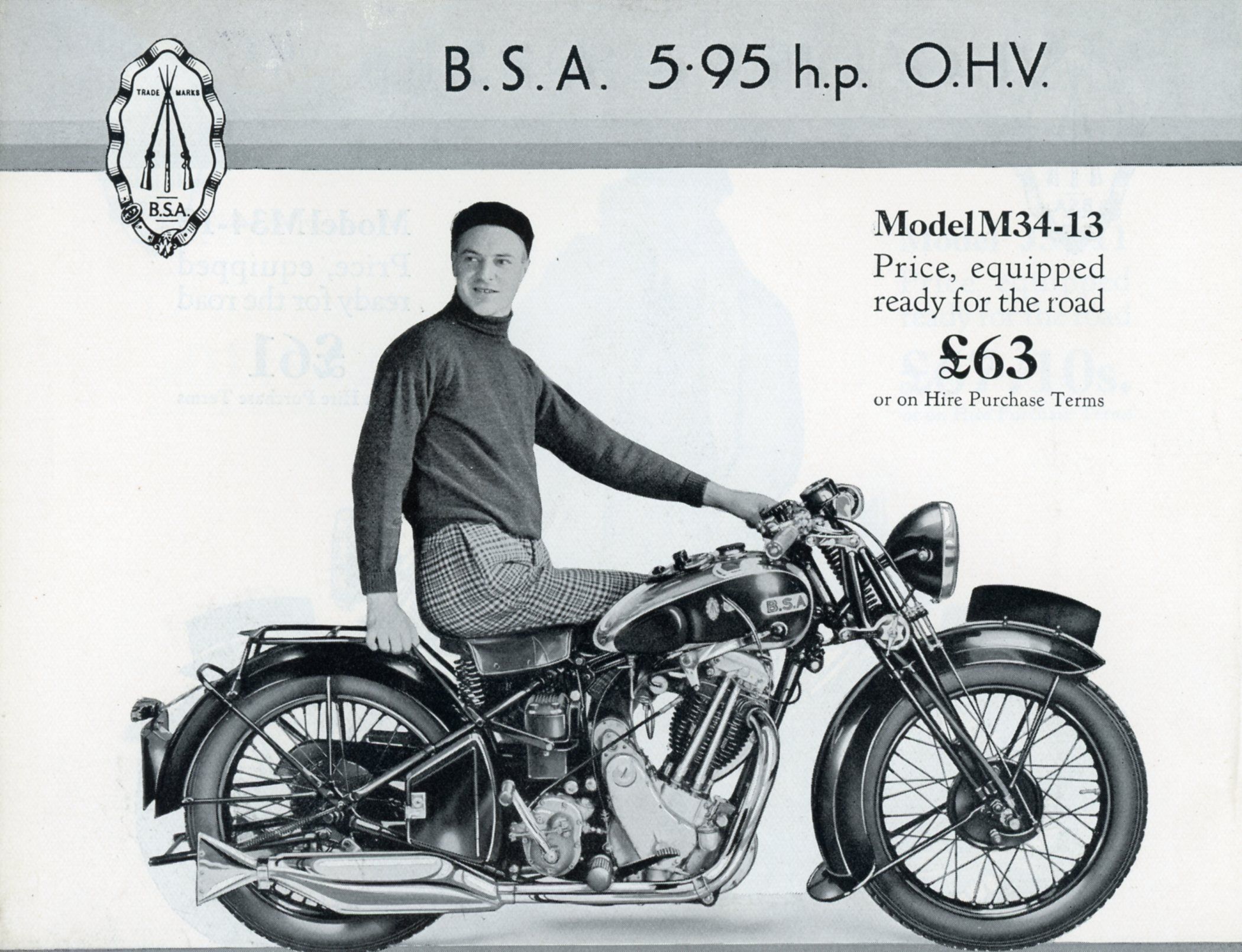

5.95 h.p. O.H.V. M34-13

M34-13 or 5.95 h.p. O.H.V. The 595cc OHV Sloper for more extra power.

black frame, chrome plated petrol tank with green panels, instrument panel in tank. Special finish to gearbox and crankcase. Quickly detachable rear wheel.

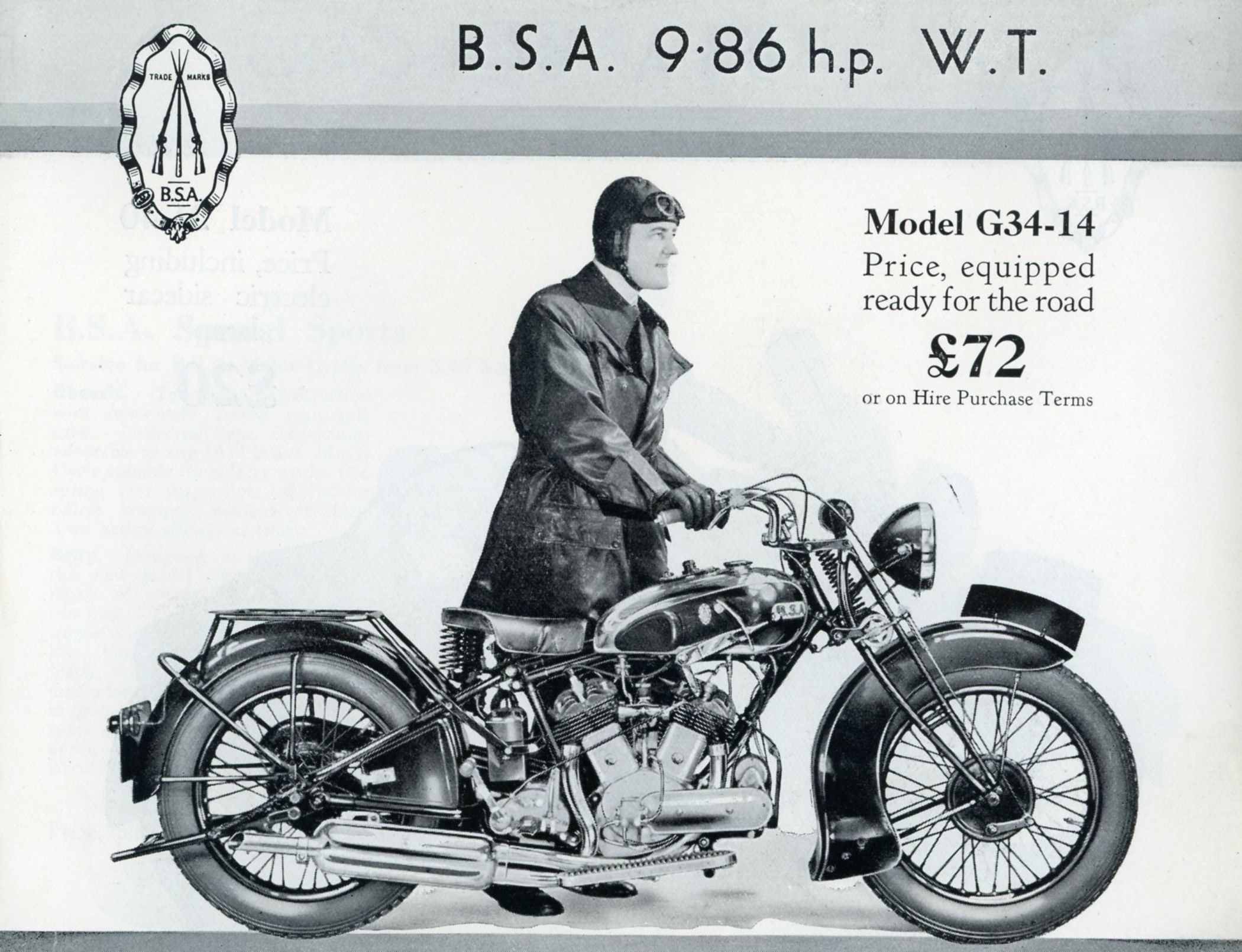

9.86 h.p. W.T. G34-14

G34-14 W.T. or 9.86 h.p. W.T. The faithfull 986cc sidevalve V-twin in World Tour trim with total loss lubrication.

black frame, chrome plated petrol tank with green panels, instrument panel in tank. Quickly detachable and interchangeable wheels, heavier tyres, valanced fromt mudguard and three(!) speed gearbox
